Socket Accept

The Socket rules (Accept, Bind, and Connect) monitor and control (allow or restrict) network connections for the Waratek-protected application.

Overview

Network connections can be controlled by restricting, monitoring, or allowing connections to or from specific IP addresses, ports, or paired combinations.

Network-based applications that are Waratek-protected will need to communicate with remote clients and servers utilizing TCP/IP addresses and/or ports. This is accomplished either by accepting incoming connections (Accept Rule), establishing outgoing connections (Connect Rule), or Binding to local ports in either a server or client capacity.

For example, the rule might be used to deny incoming connections to the Waratek protected application from specific IP addresses, or to prevent the Waratek protected application from even reserving and listening on a network port, or to prevent the application from connecting to specific ports on any machine - for example you might want to restrict a DNS server from communicating on any ports other than 22 (ssh, for admin purposes), 53 (default DNS port for TCP or UDP), or 853 if running DNS over TLS.

The Accept Rule applies to Waratek protected applications acting as a server for receiving incoming connections, and the rule will either block or allow the protected application from accepting these incoming connections.  The IP Address and port parameters designate the address of the remote clients attempting to establish a connection.

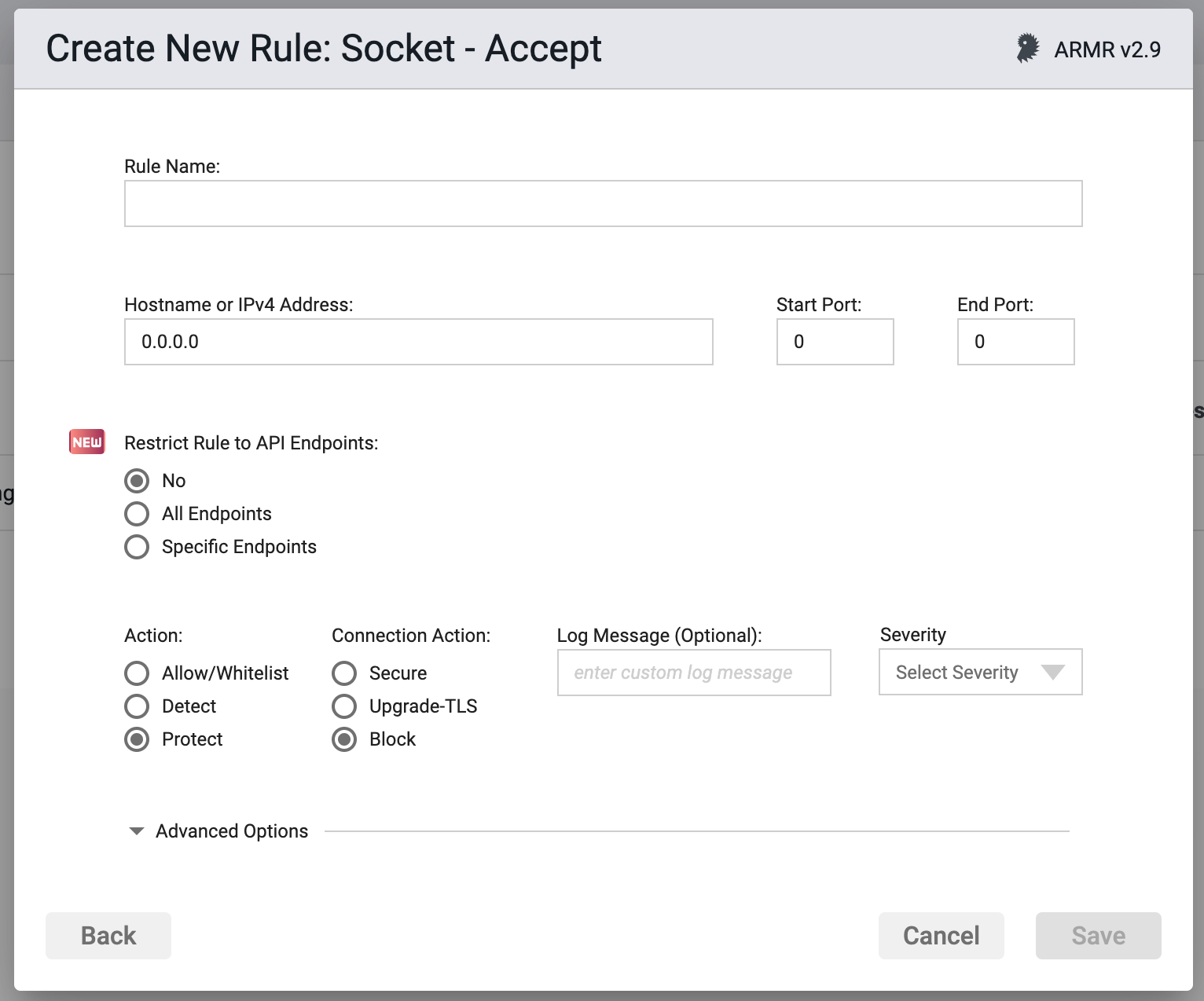

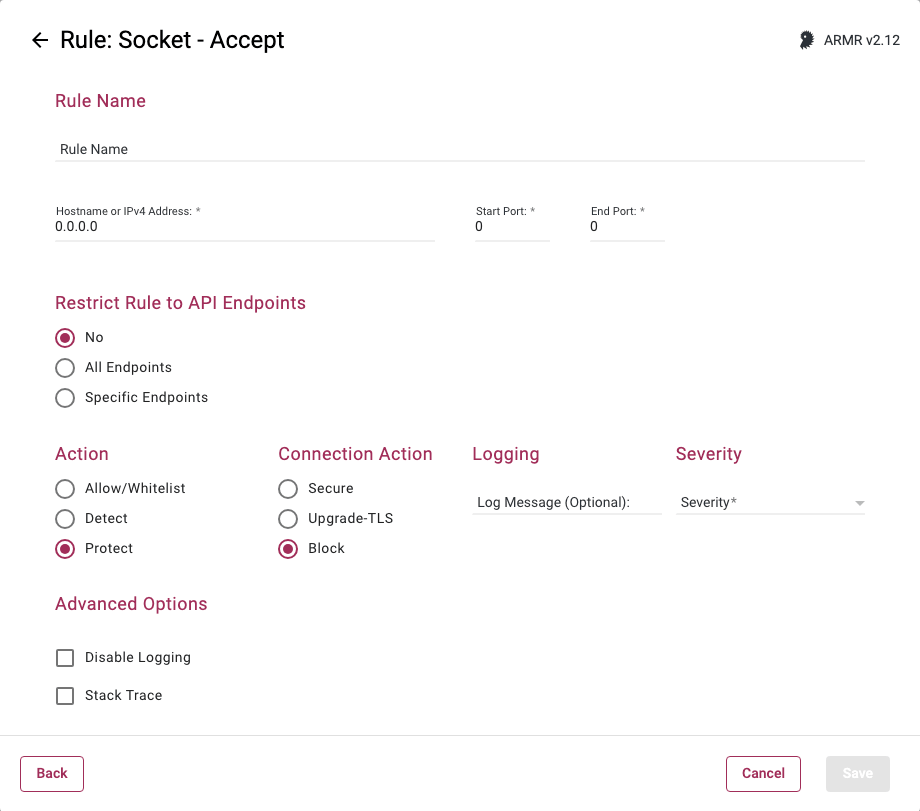

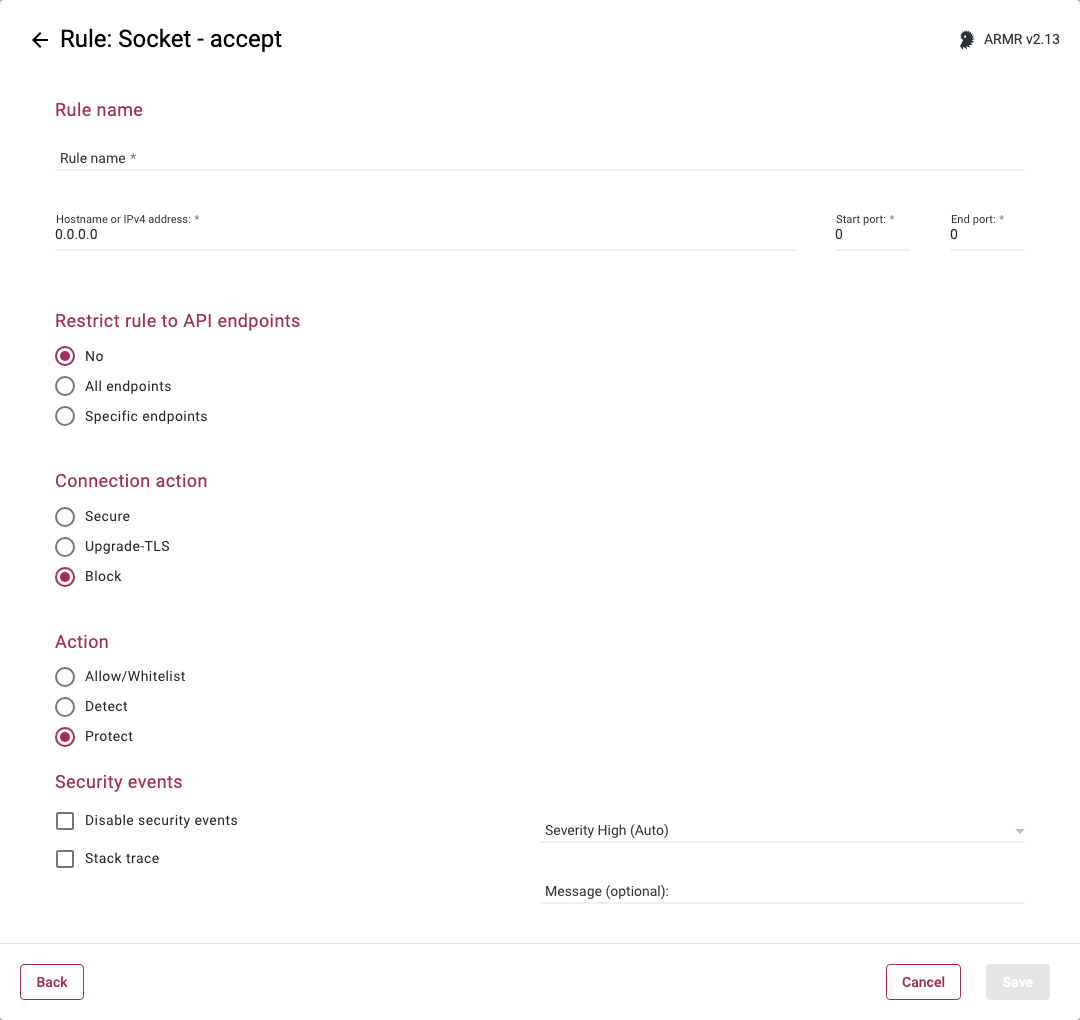

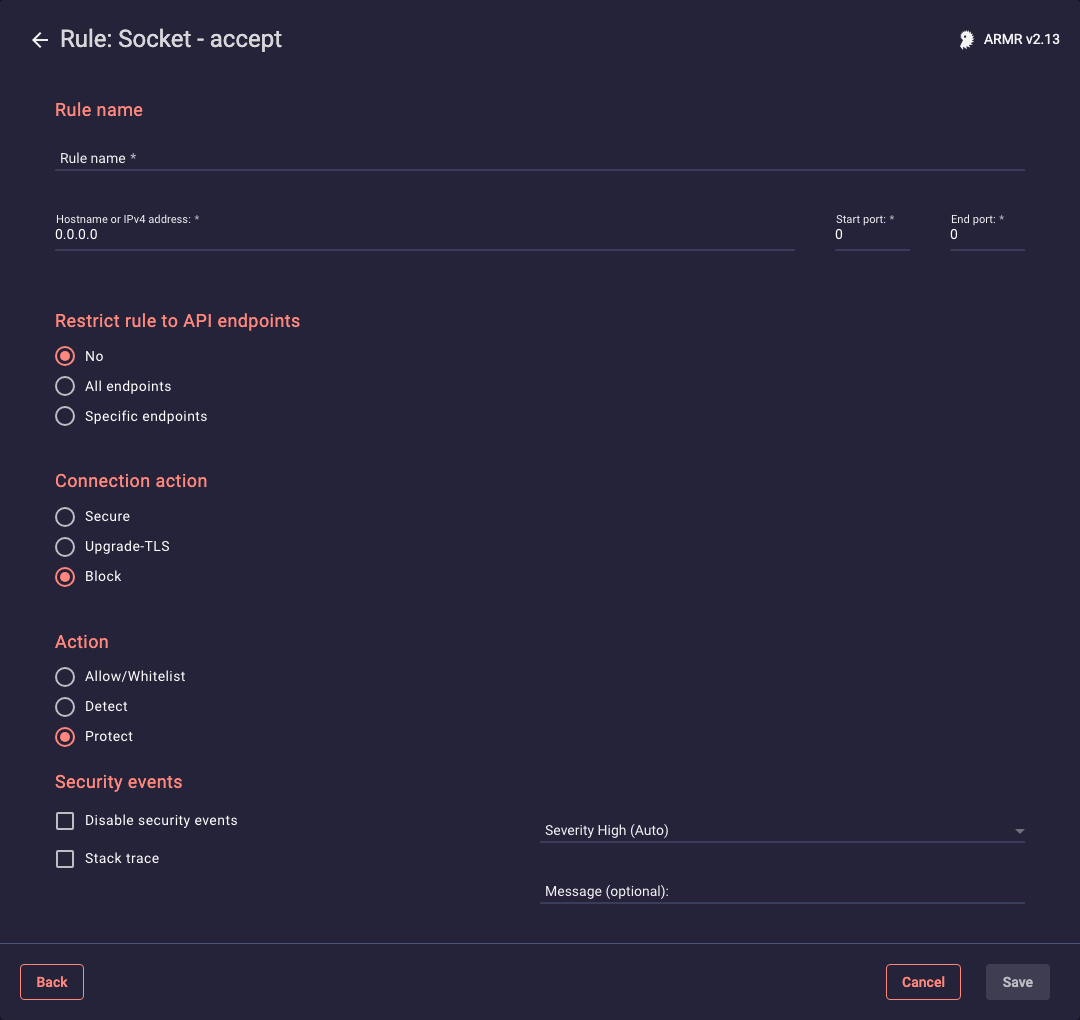

Rule Options

Hostname or IPv4 Address​

In this field, a single hostname or IPv4 address can be specified

  • Host Names can be specified (e.g. www.google.com)

  • An IP Address value of 0.0.0.0 indicates a wildcard value of Any IP address.

  • IP addresses can be specified in either of the following two notations:

    • Dot-Decimal (e.g. 1.2.3.4)

    • CIDR (e.g. 1.2.3.4/22)

      • CIDR notation for IP address ranges is supported on ARMR/2.10 and above. Valid CIDR notation format is an IPv4 IP addresss not containing any wildcard characters followed by /<bit mask>, where <bit mask> is an integer in the range 1 to 32

Start Port / End Port​

In these two fields, a port or port range can be specified

  • A Port value of 0 indicates a wildcard value of any port.
  • For a single port, both fields should have the same single port number. If you enter a port number in either the start or end ports and the other field is blank, then the number entered will be mirrored in the other port.
  • The Start Port must be =< the End Port.

Restrict Rule to API Endpoints​

You can limit the rule to respond to API requests only.

  • No - Do not restrict the rule response
  • All Endpoints - Restrict the rule response to API requests only
  • Specific Endpoints - Restrict the rule response to API requests on the specified endpoints

You can change the default value No but you can select only one of these options.

It is not possible to create an Allow rule which would only be applicable in the context of processing API requests. Restricting the rule to specific endpoints will remove the Allow action option.

See the API Protect section of the ARMR documentation for further details.

Action​

  • Detect - The Agent will detect the attack, it will log the event to the event database, and the event will be viewable on the Security Events pages in the Portal, but the Agent will take no further action.
  • Protect - In addition to the Detect actions, the Waratek Agent will also actively prevent the attack from succeeding.
  • Allow - Acts as whitelist.  This is similar to the Detect action in that no blocking or destructive action will be taken, however the Allow action will supersede the Protect action by whitelisting addresses to be excluded from Protect actions.

Connection Action​

The following parameters are only valid for Accept Socket Operations, and only when the action is Protect:

  • Block - blocking the connection.
  • Secure - upgrades standard socket connections to SSL socket connections.
  • Upgrade-TLS - upgrades the SSL/TLS stack of the SSL connection using the latest SSL/TLS stack supported by the host JVM.

For each Secure or Upgrade-TLS configuration, the Agent only allows one rule to be specified.

Log Messaging​

The logs provide a message field, which can be customized.  Text entered here is the message that will be seen on the log file’s when the rule has been triggered, regardless or the Action.  If the field is left blank, then the default logging message will be displayed in the message portion of the event log.

Severity​

The log files allow you to select a custom severity level for the event: Low, Medium, High or Critical.  A severity is required, and there is no default selection.

Advanced Options​

Disable Logging - By checking this option, no logging will be performed when a rule is triggered. Subsequently the Portal will not see these events, and they will not appear anywhere in the Portal, nor will they be searchable in Event Storage.

This option will be greyed out if the rule action is set to Detect.

Enable Stack Trace - By checking this option, when a rule is triggered, the stack trace will be included in the event log, and will be available for viewing in the Portal UI for each triggering security event.

This option will not be available when the Protect Action is set to either Secure or Upgrade-TLS
